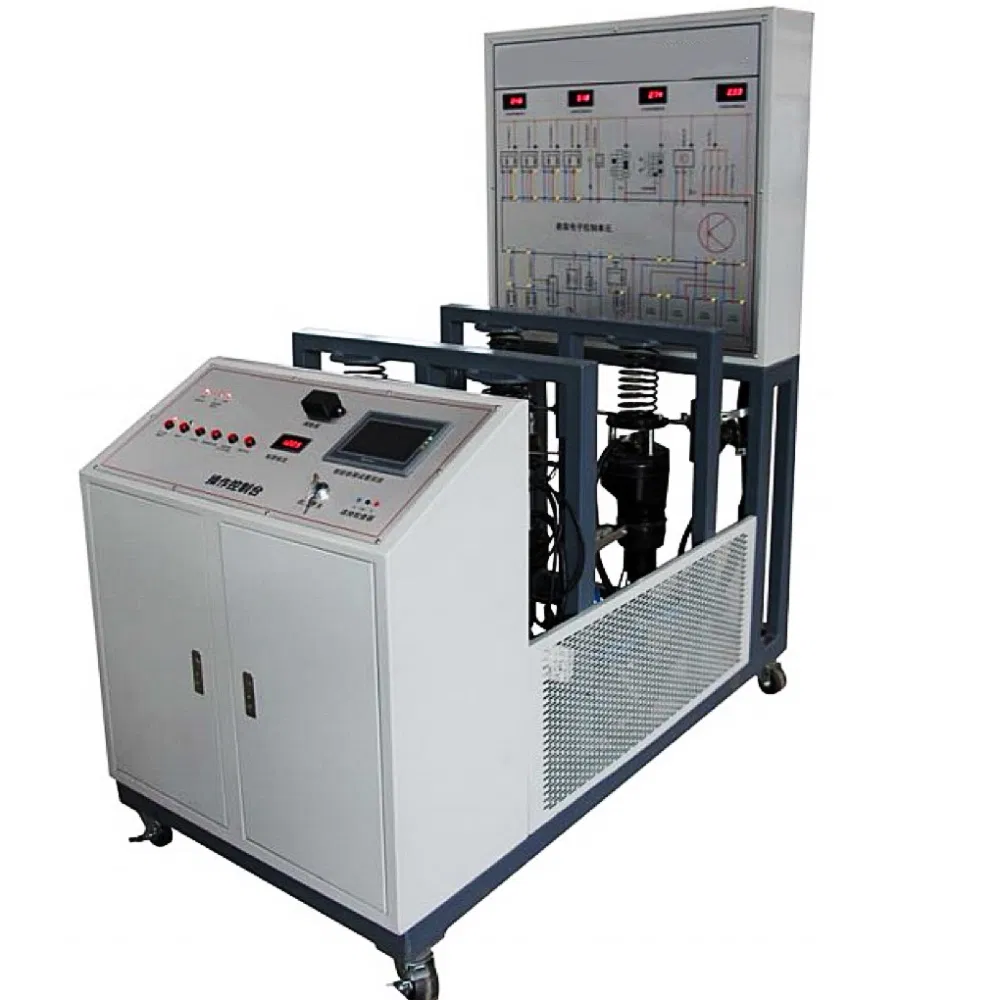

Automotive Electric Control Pneumatic Suspension System Bench Electrically Controlled Air Suspension Trainer

EQUIPMENT OVERVIEW

The training platform is based on the physical production of the automotive electronic control pneumatic suspension system, with complete supporting accessories, simulating the working process of the air suspension system raising, lowering, and damping changes of the car under various driving conditions. The construction and maintenance training and practical teaching of electronic suspension systems applicable to secondary and higher vocational and technical colleges, as well as automotive professional training institutions, can meet the teaching needs of the structural composition, working principle, fault setting, and diagnosis of suspension electronic control systems.

TRAINING ITEM

• 1. Components and control principle project training of car electronic control pneumatic suspension systems;
• 2. Working principle project practical training of car electronic control pneumatic suspension system;
• 3. Detection project training of car electronic control pneumatic suspension system;
• 4. Circuit schematic analysis project training of car electronic control pneumatic suspension system;

TECHNICAL PARAMETERS
