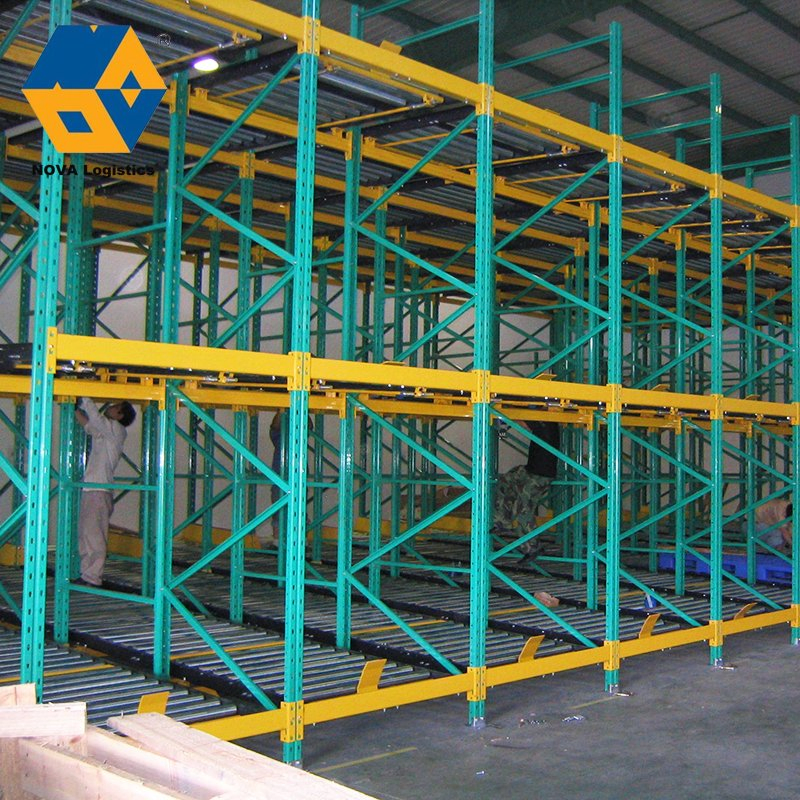

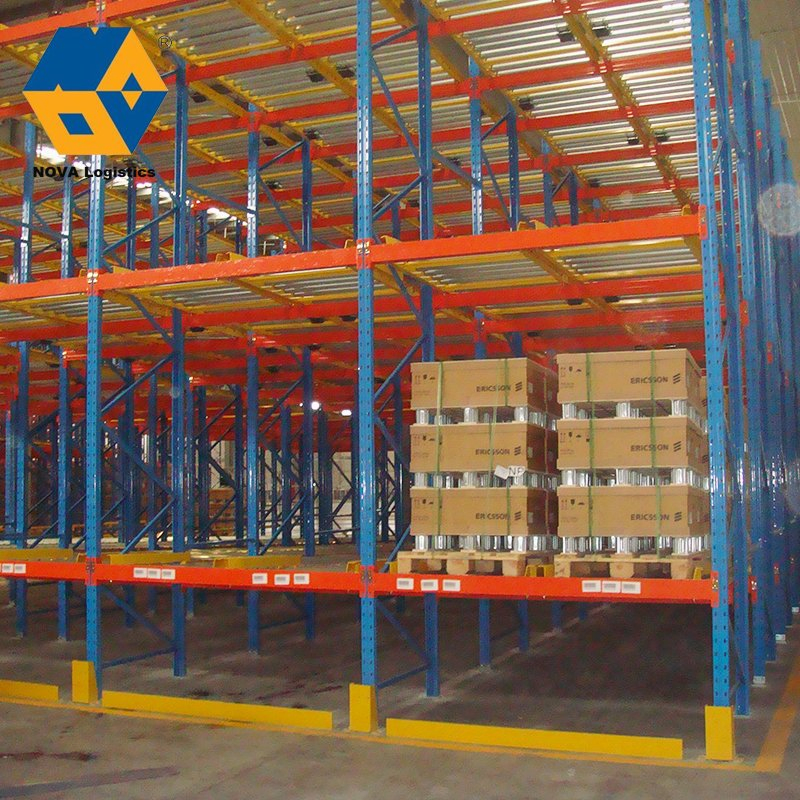

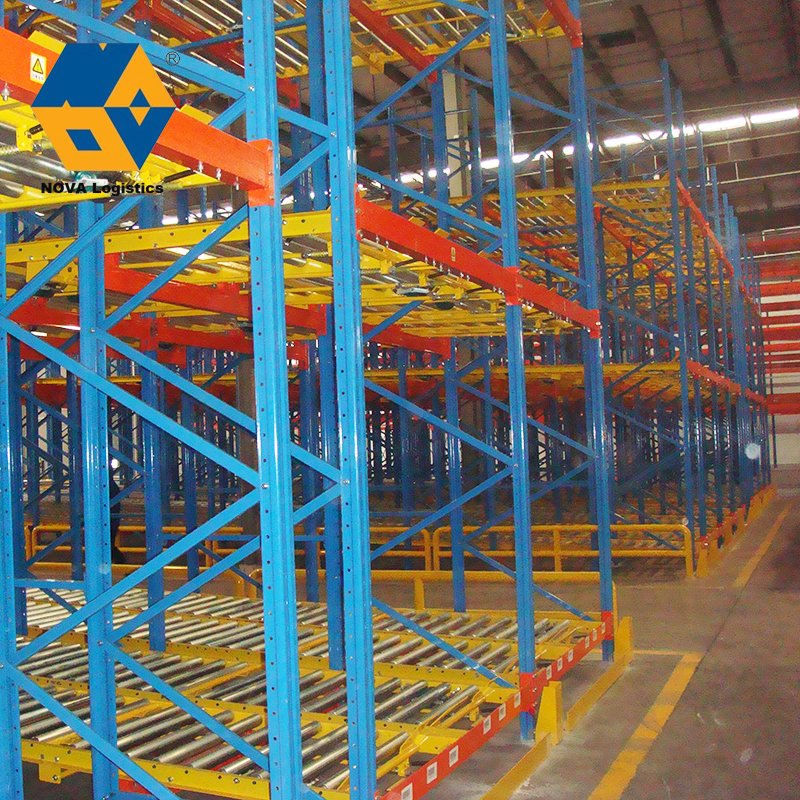

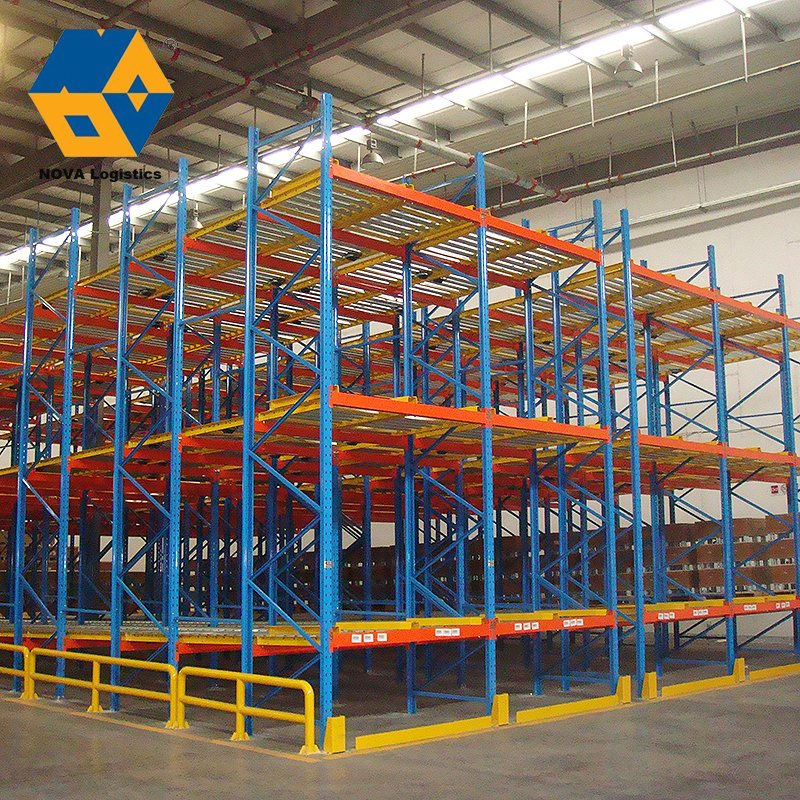

Nova Customized High Density Adjustable Selective Gravity Racking Steel Warehouse Storage Heavy Duty Gravity Flow Roller Pallet Rack

1 / 5

Nova Customized High Density Adjustable Selective Gravity Racking Steel Warehouse Storage Heavy Duty Gravity Flow Roller Pallet Rack

Customization:	Available
After-sales Service:	Installation
Warranty:	10 Years

Send Inquiry

Product Description

📊 Basic Information

Usage

Supermarket, Industrial, Warehouse Rack

Material

Steel

Structure

Gravity Pallet Racking

Mobility

Adjustable

Height

5-15m

Weight Capacity

500kg-1500kg

Color

Blue / Orange or Customized

Surface Treatment

Power Coating

Certification

ISO9001/14001/10012/CE

Production

6000tons/Month

📦 Product Description

Gravity Pallet Racking

Key Features:

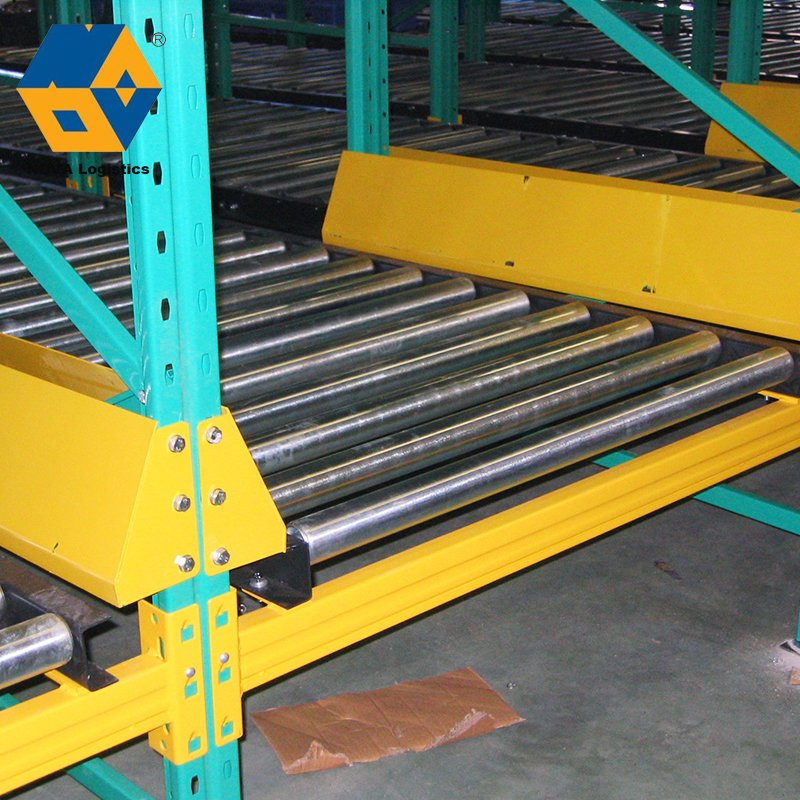

Using roller rail system or pallets with roller and the influence of gravity.

First in and first out (FIFO) principle for efficient goods management.

Designed for storing a large number of goods of the same type.

Ensures maximum utilization of warehouse space.

Heavy-Duty Storage Solutions:

Fully adjustable layers with 75mm increments for diverse storage needs.

Heavy-duty upright sections designed for stability and high-capacity loading.

Available in standard and customized dimensions to match specific workspace requirements.

Durable epoxy powder coated or galvanized finishes to prevent corrosion.

Compatible with top European standards (75mm and 76.2mm pitch).

Frame	Height: 2-13m \| Depth: 600-1,400mm Upright section: 80x60, 90x70, 100x65, 120x87mm Thickness: 2.0/2.3/2.5/3.0mm
Beam	Length: 1200-4000mm (Popular: 2300, 2500, 2700, 3200, 3600mm) Section: 80x50, 100x50, 110x50, 120x50, 140x50mm Thickness: 1.4--1.5mm
Load Capacity	1-4 Tons per Layer
Technical Details	Pitch: 75mm / 76.2mm \| Finish: Powder Coated, Galvanization \| Packing: Stretch film & carton

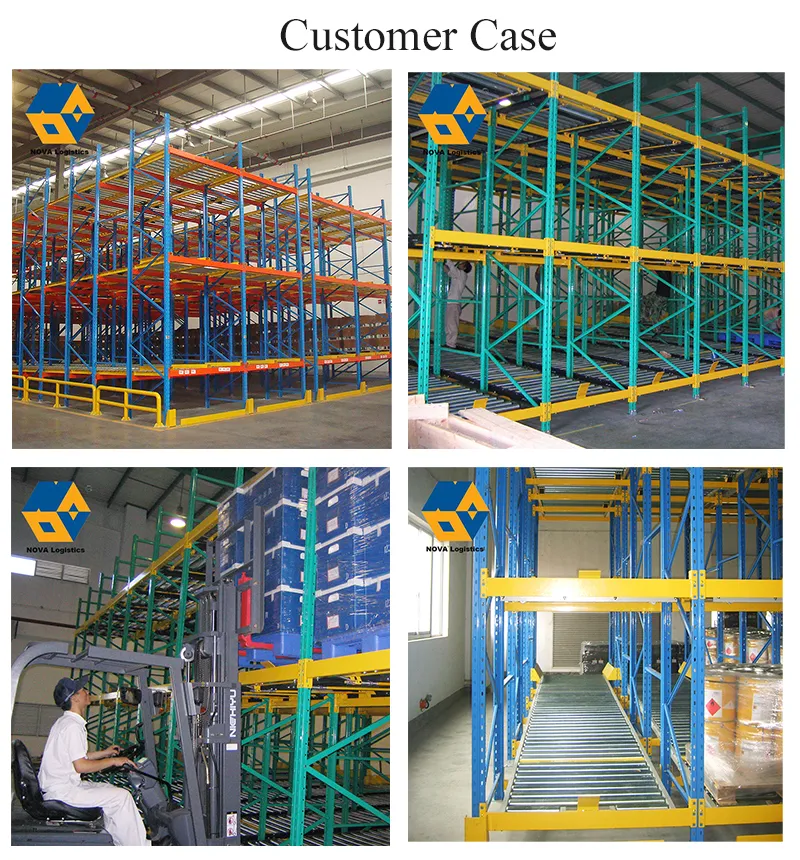

🖼️ Visual Display

❓ Frequently Asked Questions

What is Gravity Pallet Racking?

It is a high-density storage system that uses inclined tracks and rollers, allowing pallets to slide from the loading side to the unloading side via gravity.

How does the FIFO principle work here?

First-In, First-Out (FIFO) means the first pallet loaded on the rack is the first one to be removed, which is ideal for goods with expiration dates or high turnover.

Are the sizes customizable?

Yes, we provide both standard and customized dimensions. You can specify your requirements for height, depth, and load capacity.

What is the typical load capacity?

The system typically supports between 1 to 4 tons per layer, depending on the beam and upright specifications chosen.

What surface treatments are available?

We offer epoxy powder coating and galvanization to ensure long-term durability and protection against corrosion.

What are the main applications?

It is widely used in supermarkets, industrial warehouses, and large-scale distribution centers requiring high-density space utilization.
